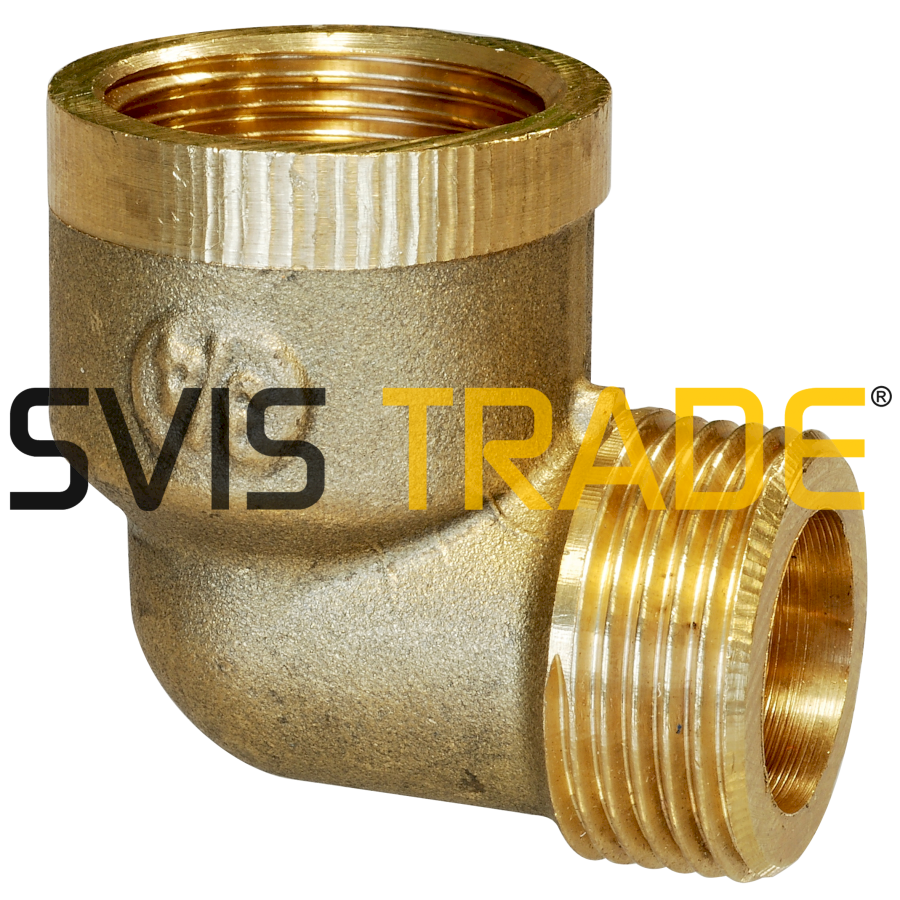

    092 3/4" Elbow MF STANDARD

    Fittings of brass CW617N. Fittings are specified for joining of threaded according to ISO 228-1. Design: without surface treatment.

    Your price79,13 Kč
    Your price without VAT65,40  Kč
    In stock (2944 pcs)Not in stock
    Unit:pcs
    Code 2:031.MMS.092.020
    EAN:
    8592018404489
    Warranty:2 YEARS
    Norms: ČSN EN 10242, ČSN ISO 7-1
    Certificates: B-02228-20

    Description

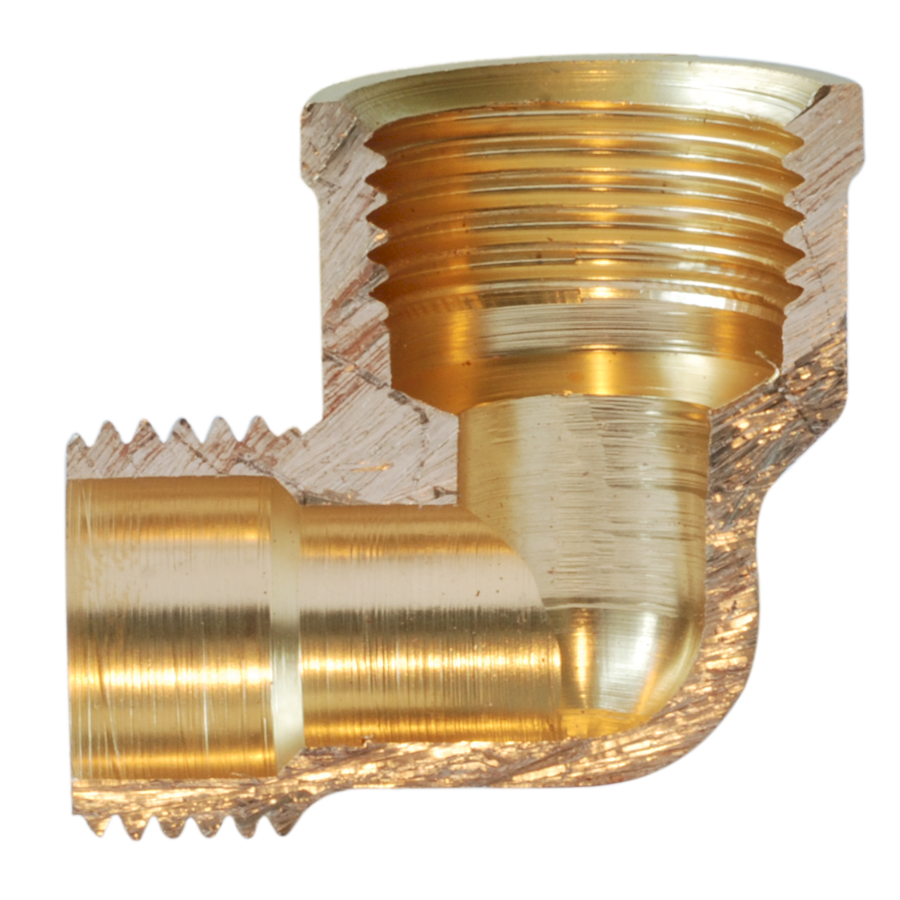

    Thread brass fitting, type - elbow 90° with inner x outer pipe threads, without surface treatment. Connecting threads G are parallel for join not sealing on threads according ISO 228-1. Produced according EN 1254-4.

    Using:
    Fittings are used to transport water, drinking water, air, non-abrasive and aggressive substances with maximum working pressure of 1.6 MPa at a temperature of fluid from 0 ° C to 120 ° C, medium can not freeze.

    092 3/4" Elbow black MF

    FC09234
    37,15  Kč / pcs with VAT
    In stock (27966 pcs)Not in stock
    Fitting of malleable cast iron B300-06. Fittings are specified for joining of threaded according to ISO 7-1. Design is black.

    092 3/4" Elbow galv. MF

    FP09234
    41,50  Kč / pcs with VAT
    In stock (37083 pcs)Not in stock
    Fitting of malleable cast iron B300-06. Fittings are specified for joining of threaded according to ISO 7-1. Design: galvanized. Zinc coating thickness of 70 microns is generated by hot dip galvanizing
